The NXT: Mindstorms Gets Smarter
8 years after its release, the RCX was beginning to show its age. Microprocessor technology had advanced beyond the necessity of some of its biggest limitations, including its seven-segment display, infrared communications, relatively weak and fragile motors, and limited onboard storage and processor instruction set.
In 2006, LEGO released the second-generation Mindstorms platform, the NXT. It represented a significant departure from the previous generation, bringing with it new motors, new sensors, a strikingly different visual programming language, and a graphical on-brick interface with more features. If the RCX reflects the state of mobile computing in 1998, the NXT brings the Mindstorms line into the 21st century.
Improvements over the RCX
The NXT features several improvements in functionality over the previous-generation RCX platform. These include, but are not limited to:
- A larger, bitmapped screen, which allows for a more advanced user interface, including limited on-brick programming environment.
- USB Connectivity, so you don't have to screw around with infrared communications.
- Bluetooth Connectivity, for wireless downloading of programs from a computer and (with third-party apps) real-time control of a robot from a smartphone.
- More powerful motors with built-in encoders, so your robot can pull more and keep track of how far it's gone without the need for external rotation sensors.
- A 4th sensor input port, for connecting an additional sensor.
- The ability to store more than 5 programs at once, though due to the relatively small amount of on-board storage it's still possible to run out of space, especially by storing sound clips.
Hardware Guide
NXT Brick
There is only one hardware revision of NXT brick. The front of the brick features a
100x60-pixel monochrome screen, and four buttons (left, right, OK, and back) for navigating
the user interface. The top features three motor ports and the USB-B port for downloading
programs from a computer, while the bottomfeatures four sensor ports. The battery door
is located on the back, along with mounting holes for Technic pins, which can also
be found on the left and right sides of the brick.

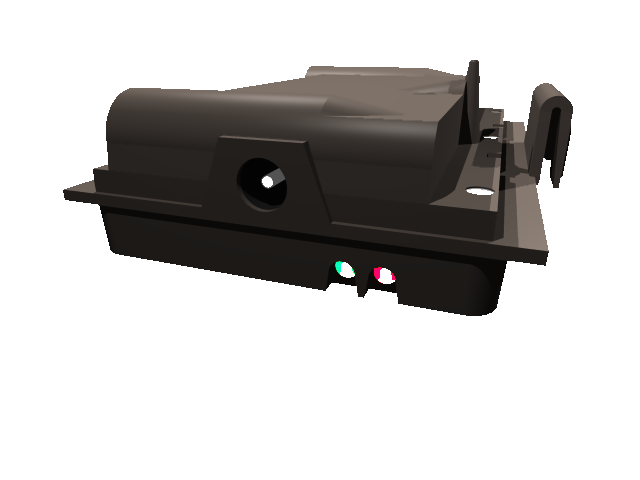

Rechargable Battery Pack
A rechargable battery pack was available from LEGO® Education (and included in the educational NXT kits) which replaced the 6 AA batteries on which the NXT otherwise runs. In addition to recharging the battery, the power input jack can also be used to continuously power the NXT brick. This is an extremely convenient part to have, as it alleviates the need to take a robot apart regularly to swap batteries.
Two hardware revisions of the battery pack were released. The first revision (dark grey in color)
works with the same 9-12V AC power supply compatible with the RCX 1.0 brick (Yes, you read that
right, it's an AC input). The second revision (white in color) works with a 10V DC power supply,
was also later included with the EV3 rechargable battery pack.

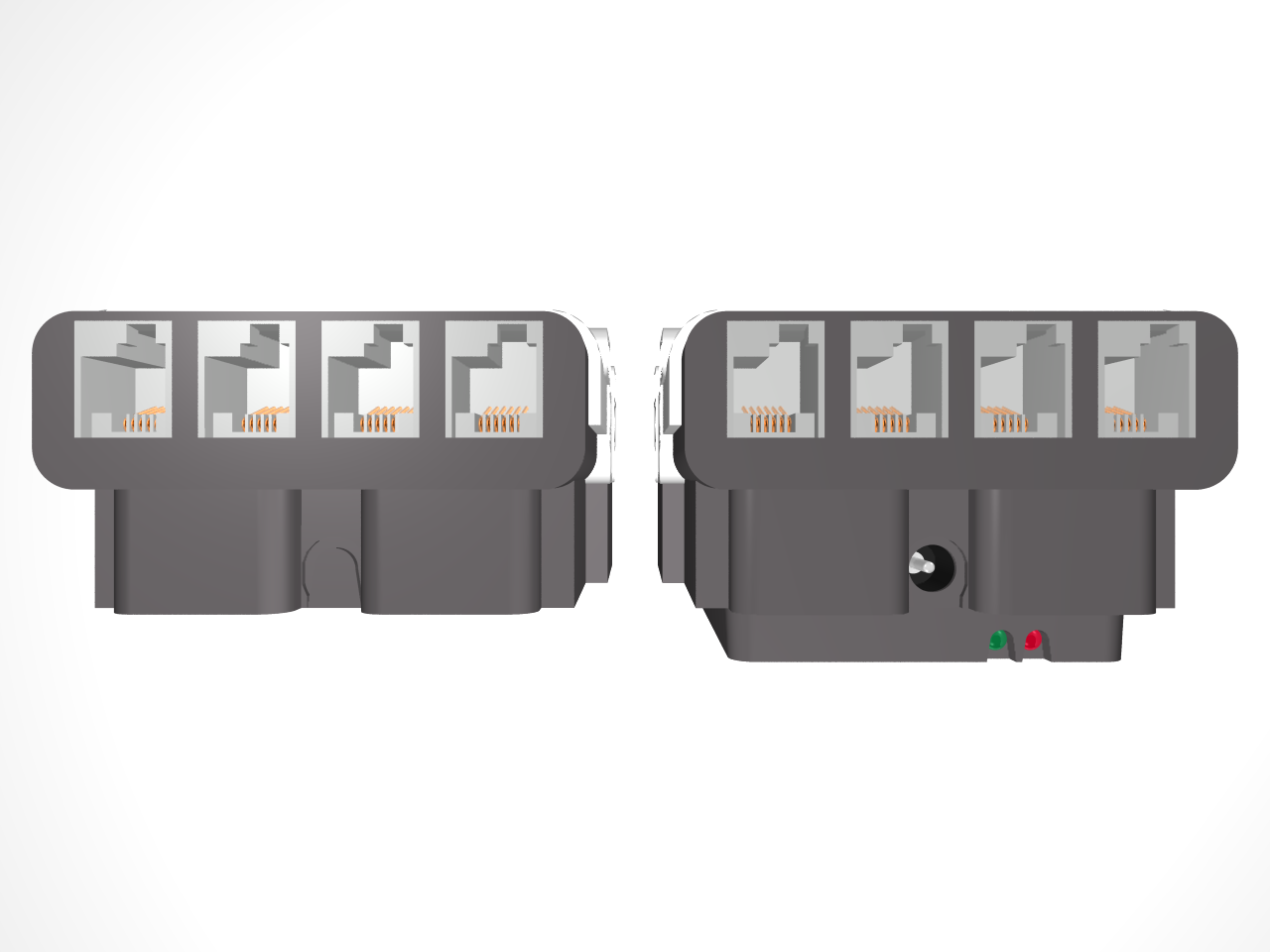

One thing to note is that the battery pack sticks out from the bottom of the NXT brick further than the
AA battery door, adding 1 stud to the total height of the brick.

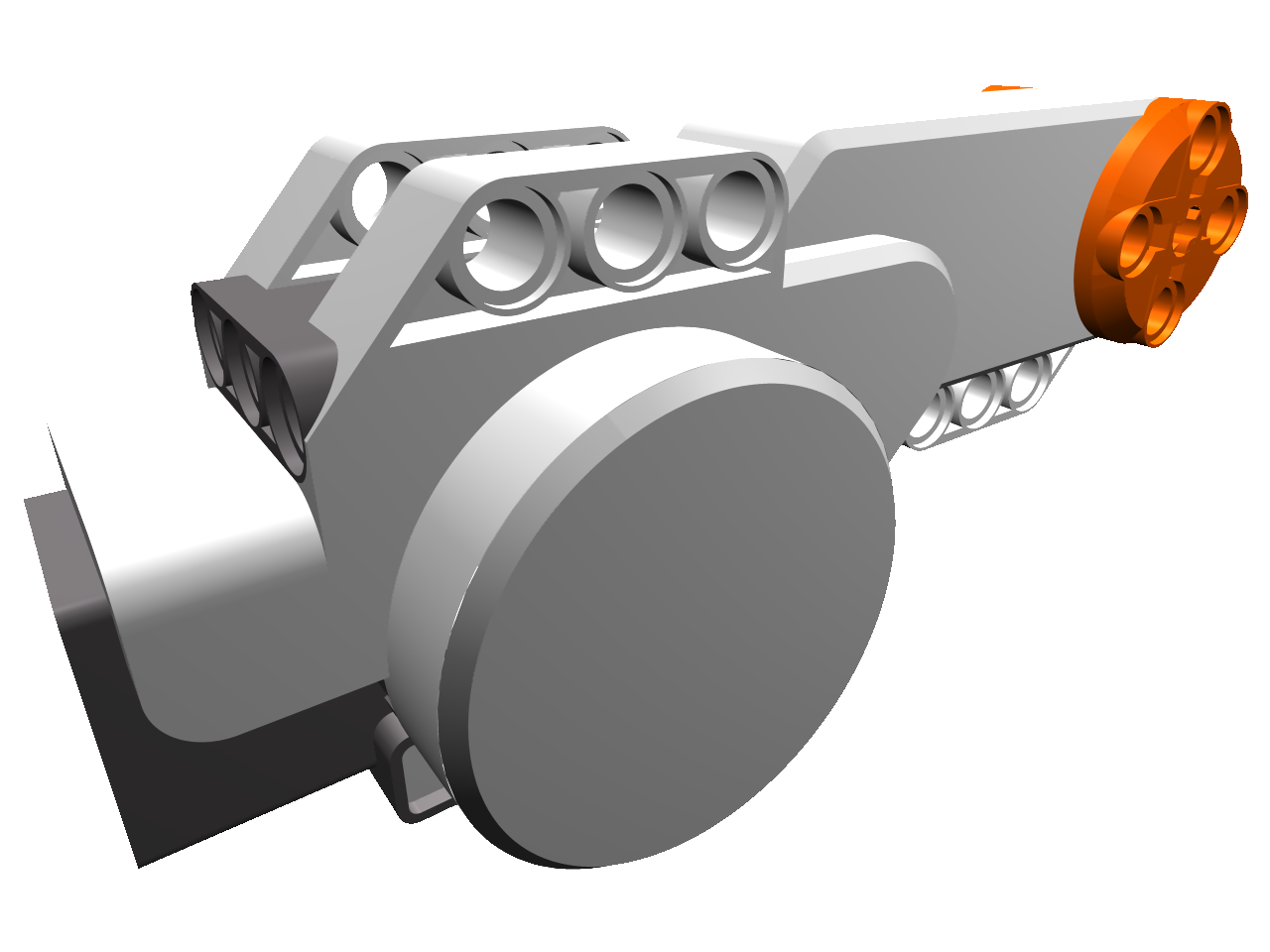

Motors
LEGO® referred to the NXT's motors as "Integrated Servo Motors". This isn't entirely accurate
(the motor itself is a brushless DC motor, not a servo), but the teminology indicates that the
motors contain integrated rotation sensors, and keep track of their current position (in degrees)
since last reset. This eliminated the need for separate rotation sensors (as on the RCX), freeing up
more sensor ports for use elsewhere.
Sensors
LEGO® released various first-party sensors for the NXT:
- Light Sensor - measures light intensity using a photocell. Can operate in "ambient mode" (measuring the ambient light level) or "reflected mode" (using a built-in LED to shine on a surface, and measure how much light is reflected back).
- Color Sensor - Detects the color of the thing it's pointed at. Can also operate in "light sensor" mode, with all the functionality of the normal light sensor.
- Touch Sensor - Contains a button; detects when the button is pressed.
- Sound Sensor - Detects the ambient sound level (in dB). Disappointingly, cannot be used as a microphone to record audio.
- Ultrasonic Distance Sensor - Sends out ultrasonic pulses from one "eye" and times how long they take to come back to the other "eye", translating this into distance information about the object the pulses bounced off of.
- Temperature Sensor - Contains a probe which, when submerged in a fluid (most commonly air or water), detects the temperature of the fluid.
Third-party accessories
There are many sensors and other accessories made by various companies available for the NXT; an incomplete list of such manufactures is available in this StackExchange thread.

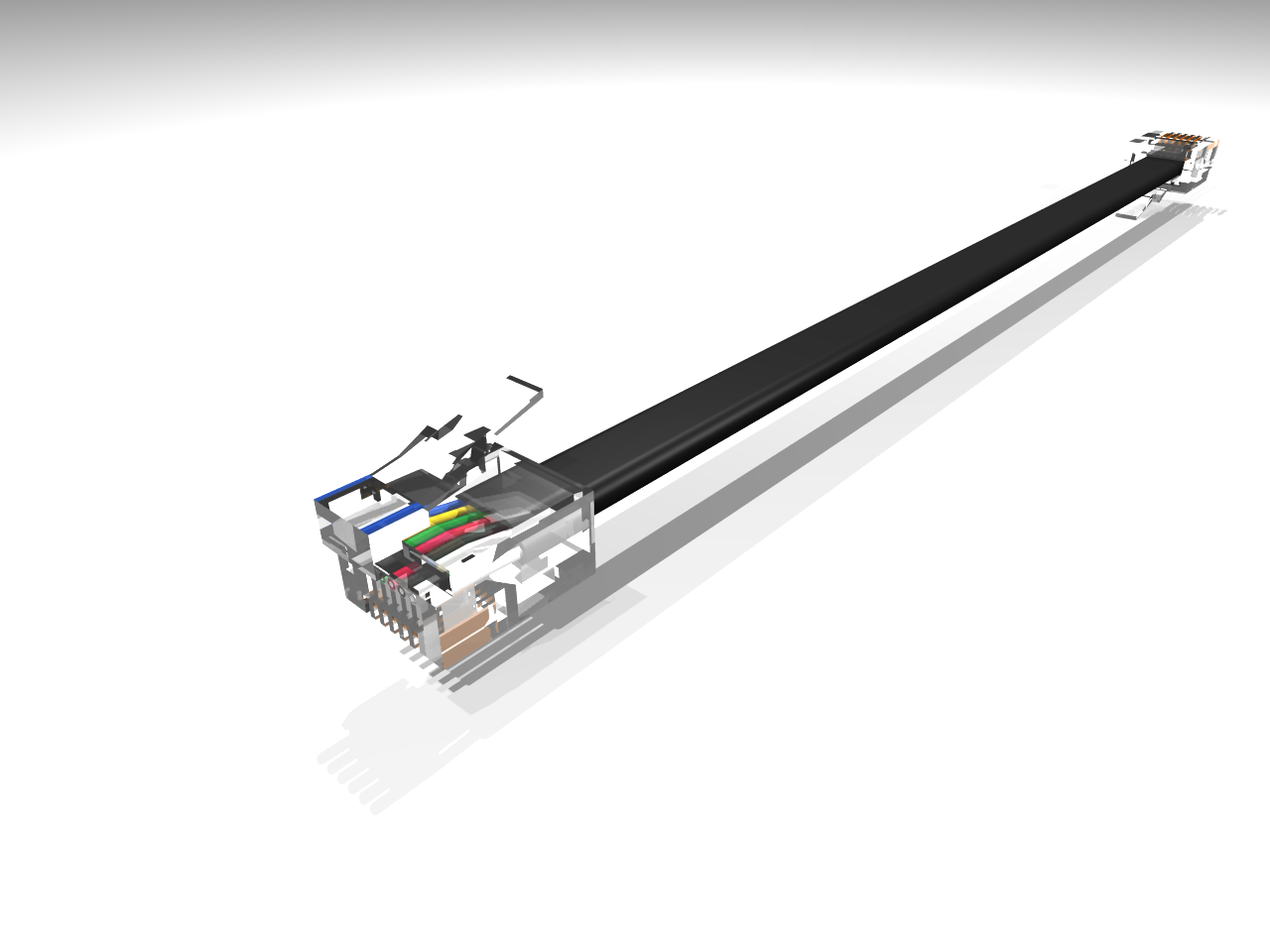

Cables
Unlike earlier LEGO® motors and sensors, more than two pins are necessary to
communicate with the NXT's more advanced motors and sensors. Thus, a new style of
cable and connector was required. The wire connector used for NXT motors and sensors
is reminiscent of the RJ12
connector, though the retention tab located in the middle of the connector has been moved
to one side, ensuring incompatibility with standard RJ12 connectors. NXT-style cables are
available in 20, 25, 35, and 50 centimeter lengths.

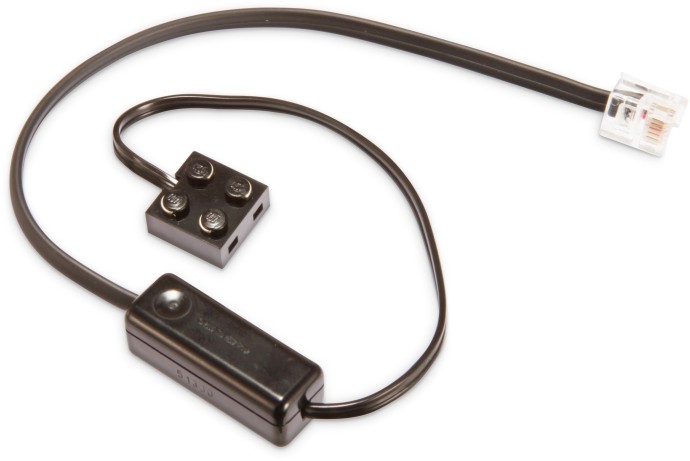

Convertor Cable
A convertor cable was also available, which allowed RCX motors and sensors to be controlled
by the NXT.
Other Accessories
Buying Guide
Buying a set
If you're new to Mindstorms, you'll probably want to buy a set containing a bunch of parts. eBay and Bricklink are both good places to buy NXT sets online.
Only three sets were ever released containing NXT bricks:
| Set # | Set Name | Motors Included | Sensors Included | Battery Pack Included? |
|---|---|---|---|---|
| 8527 | "Toy" 1.0 Set | 3 | 1 light, 1 sound, 1 touch, 1 ultrasonic | No |
| 8547 | "Toy" 2.0 Set | 3 | 1 color, 2 touch, 1 ultrasonic | No |
| 9797 | Education NXT Set | 3 | 1 light, 1 sound, 2 touch, 1 ultrasonic | Yes |
An interesting question is, which set contains the best combination of included electronic components? My personal preference is for set 9797 due to the included rechargable battery. However, the color sensor included with set 8547 can be a nice thing to have for some applications. I think the 8527 set can be largely eleminated as a candidate for "best set" because the sensor selection is unremarkable and no rechargable battery pack is included. However, it could be worth picking up if the price is right.
Buying individual parts
If you already have a bunch of LEGO® elements, you can save some money by buying only the
electronic components you want. In my experience, Bricklink
is the best place to buy individual Mindstorms components (or individual LEGO® components of any kind).
Here are links to all the parts I've mentioned:
Part Number
Name
Link
53788
NXT Brick (White)
Link
10287
NXT Brick (Black)
Link
9798
Battery Pack (AC input)
Link
9693
Battery Pack (DC input)
Link
53787
Interactive Servo Motor
Link
9844
Light Sensor
Link
9694
Color Sensor
Link
9843
Touch Sensor
Link
9845
Sound Sensor
Link
9846
Ultrasonic Sensor
Link
9749
Temperature Sensor
Link
various
(most starting with 5580)Cables
Link (general search)
x1676
Convertor Cable
Link
Programming
First Party
Programming the NXT is possible in several first-party programs. All are based on National Instruments LabView, though some bear more visual resemblance to vanilla LabView than others. All are compatible with Windows and macOS.
NXT-G is the programming environment originally released with the NXT brick. This is the most
popular first-party software for programming NXT bricks, though in my experience it's also the
most prone to graphical and other glitches. NXT-G was made available in "Home" and "Education" versions; the
primary difference is that the Education version includes data-logging functionality; however, only
the "Home" version is
available for free download from the LEGO website. NXT-G is also the only first-party
software with support for downloading programs over Bluetooth, rather than USB.

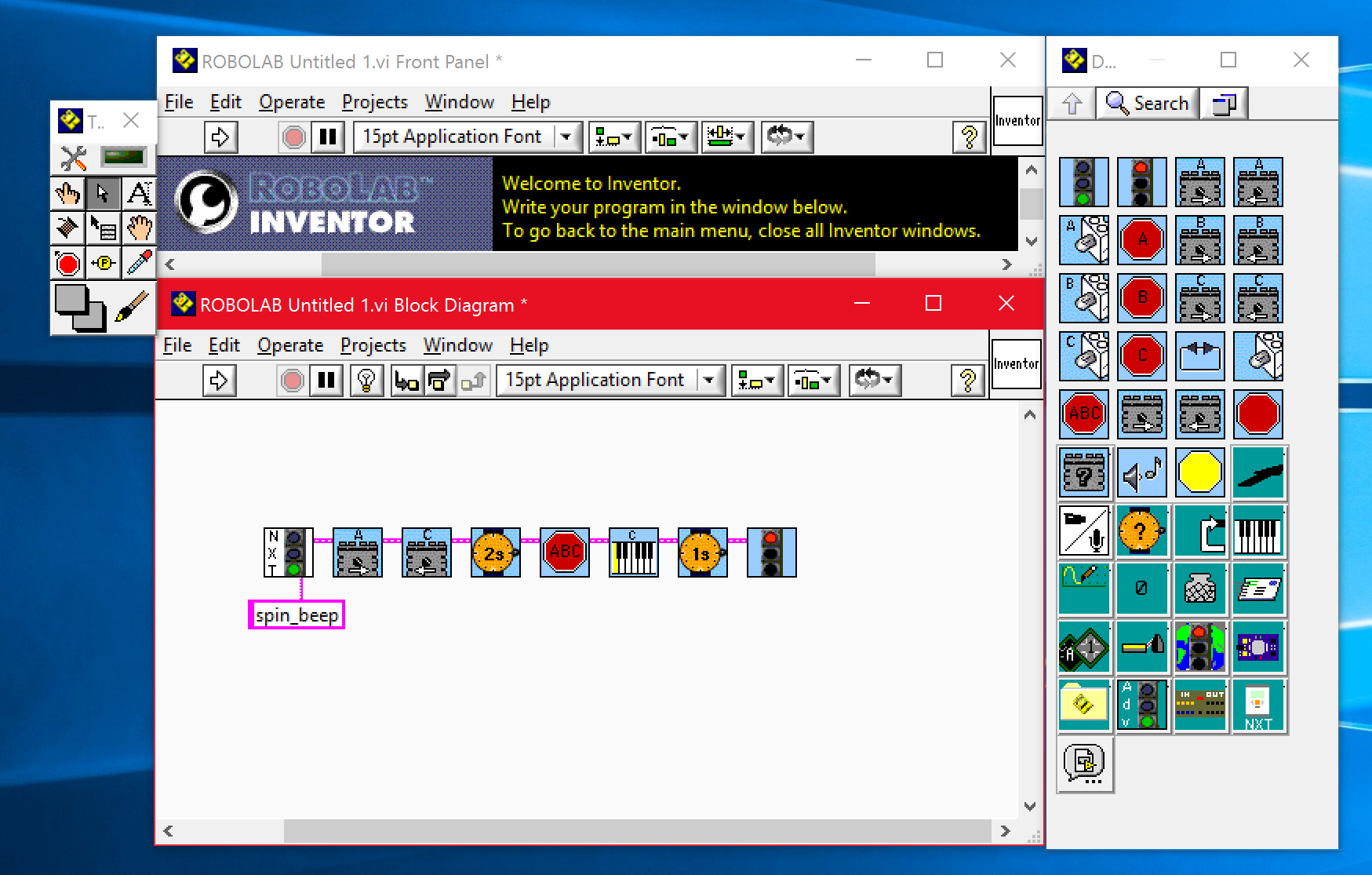

Though it was originally designed for programming the RCX brick and DACTA Control Panel (70909), version 2.9 of ROBOLAB also includes support for the NXT. ROBOLAB is much more visually similar to vanilla LabView than NXT-G, which can be initially off-putting but can also afford more flexibility in programming and fewer graphical glitches. Most features of ROBOLAB are supported, including data-logging, and new bricks are added for controlling the NXT's new motors and sensors. Unfortunately, downloading programs via Bluetooth is not supported.
Last updated in 2006 and originally written well before then, continnuing functionality of ROBOLAB on
modern operating systems is not guaranteed. ROBOLAB will install and run fine on all modern versions of
Windows, including Windows 10; however, because Mac versions of ROBOLAB 2.9 were only ever distributed as
PowerPC binaries, and thus won't run on macOS 10.6 (Snow Leopard) or newer*.
Thus, running ROBOLAB on a modern Mac is best done inside a Windows virtual machine, which works fine in my experience.
Unfortunately, it can be pretty difficult to get ahold of a copy of ROBOLAB these days if you don't already have one;
relatively few copies are available on Bricklink, and can go for upwards of $50. Note that after installing v2.9.4 from
a CD, you'll want to also install the 2.9.4c patch, which can be found here.

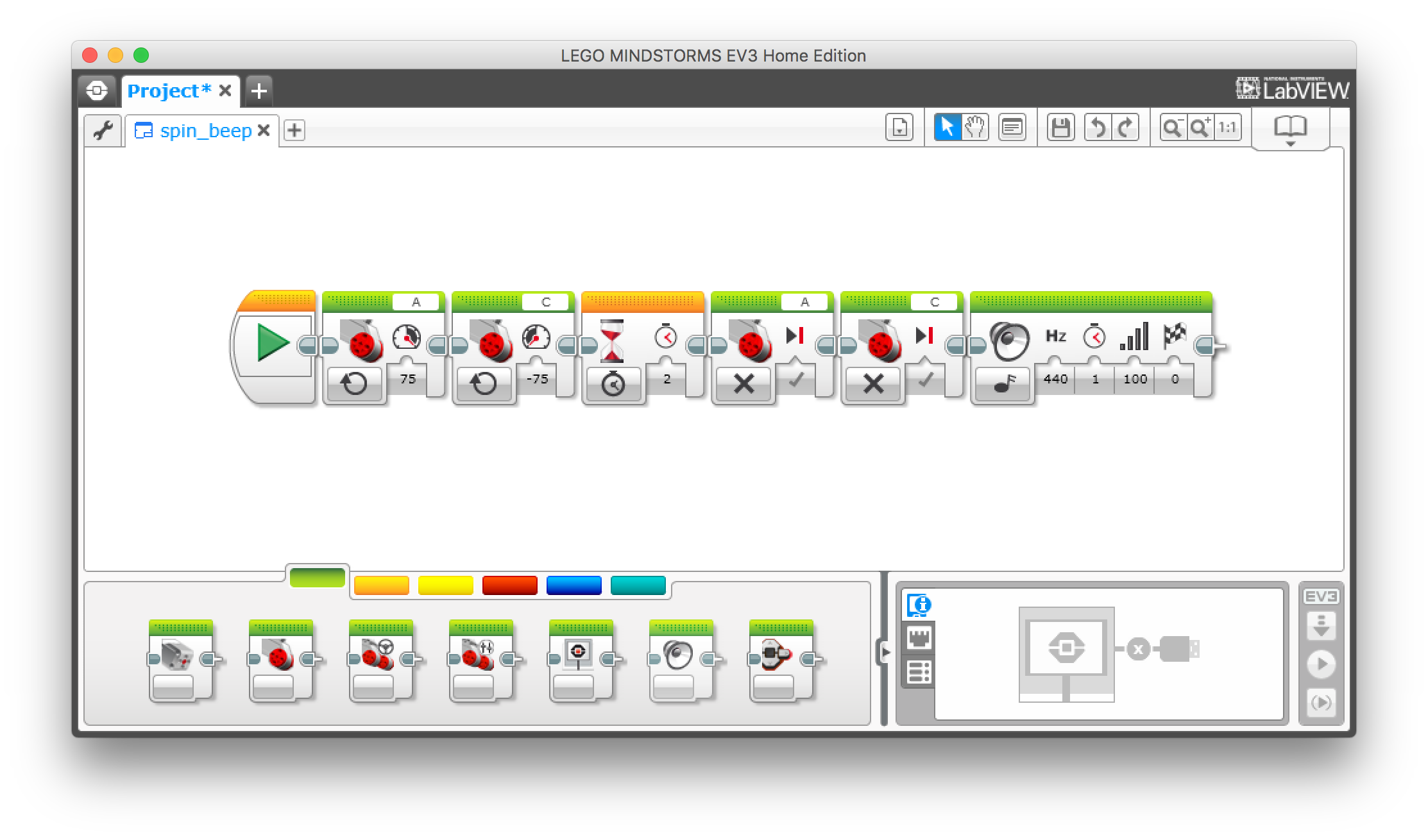

Released with the third-generation EV3 platform, EV3-G is backwards-compatible with the NXT brick as well.
EV3-G is visually and functionally similar to NXT-G, though slightly more stable. Like NXT-G, EV3-G is available
in "Home" and "Education" editions, with the Education edition supporting data-logging but only the Home edition
available for free download. Most of EV3-G's functionality is usable with the NXT, though Bluetooth downloading is not.
Third Party
This section contains information on the most popular and interesting third-party languages for the NXT. Wikipedia contains a much more complete list of NXT languages.Many Third-party languages are available for the NXT. Here is a selection of the most popular and interesting:
ROBOTC is an excellent C-based programming language for robotics,
with an accompanying IDE. Versions of ROBOTC are also available for the RCX, EV3, VEX PIC, VEX Cortex, VEX IQ, and
Arduino platforms. The IDE that comes bundled with ROBOTC is pretty good, and there are plentyof educational resources
online for use with ROBOTC, owing to its cross-platform availability. However, a disadvantage of ROBOTC is that it isn't free.
Platforms: Windows only (but works well in a VM on other platforms).
Another C-based language for the NXT is NXC ("Not eXactly C"). NXC
is basically the successor to the NQC project for the RCX, and is built on top of Next Byte Codes (NBC), an assembly-type
language for the NXT. Much documentation and help is available for NXC, including a whopping
2447-page PDF guide of which 63 pages comprise the
table of contents!
Platforms: Windows, Mac, Linux
For those who prefer Java, there's LeJOS ("LEGO Java Operating System"),
which is a Java virtual machine for the RCX, NXT, and EV3. LeJOS has proven to be one of the most popular languages for
third-party Mindstorms programming, perhaps because of its compatibility with all programmable bricks and/or the inexplicable
popularity of Java.
Platforms: Windows, Mac, Linux
pbLua is a version of the popular
Lua programming language for the NXT. It was developed
by Ralph Hempel, who previously wrote pbFORTH for the RCX and later worked on
ev3dev for the EV3. An advantage of pbLua is that programs are compiled on-brick, rather than on a computer before transfer.
Thus, once you've installed the pbLua firmware on the NXT, all that's needed is the ability to transfer plaintext files to the
NXT via USB or Bluetooth.
Platforms: Windows, Mac, Linux
NXT-Python is a Python package for controlling an NXT.
Python code runs on a computer, which must be constantly connected to the NXT via USB or Bluetooth. As such,
an NXT cannot operate in "stand-alone" mode using NXT-Python as it could with most other thrid-party languages.
However, an advantage of this strategy is that no third-party firmware is required to be running on the NXT.
Platforms: Windows, Mac, Linux
Enchanting and
OpenRoberta are both graphical programming environments compatible
with the NXT. Enchanting is a cross-platform desktop app based on the excellent Snap! language,
which itself is based on the very popular Scratch language, and which runs on top of the
LeJOS firmware. OpenRoberta is a browser-based application which requires constant communication with the NXT to run.
Platforms: Windows, Mac, Linux (Enchanting); Browser-based (OpenRoberta)
Resources
If you know of some other resource that you feel should be included in this section, feel free to suggest it to me via email.Hardware/Building Guides
- NXTPrograms.com - Many project ideas & building guides for various NXT kits, including NXT-G programming examples in many cases.
- Building Instructions @ The NXT Step - Compilation of many NXT projects from many people, with building instructions.
Software/Hacking
- MotorControl - Third-party sofware for precise control of NXT motors (used by various other projects, including nxt-python).
Sharing
- LEGO Digital Designer (LDD) - Relatively easy-to-use LEGO CAD program, officially supported by LEGO. Not quite as feature-packed as many LDraw editors, though.
- LDraw - an open standard for LEGO CAD programs. Various editors are available for many platforms. Unlike LDD, LDraw's parts library is much larger.
- r/mindstorms - Good place to ask questions about the NXT and other Mindstorms products, as well as to see things other people have done.
- LEGO Stack Exchange - Not NXT-specific (or even Mindstorms-specific), but still a good place to ask questions about the NXT.
General/Miscellaneous
- Bricklink - The best place to identify parts, find the contents of sets, and buy individual parts.
- LEGO Engineering - Resources and info about various Mindstorms platforms, including the NXT.
- The NXT Step - Popular, long-running blog covering the NXT (and, more recently, EV3) platforms.
Books
- The Unofficial LEGO MINDSTORMS NXT Inventor's Guide by David J. Perdue
- Building Robots with LEGO Mindstorms NXT by Mario Ferrari et al
- Extreme NXT: Extending the LEGO MINDSTORMS NXT to the Next Level by Philippe Hurbain et al.
- ...and various others
Frequently Asked Questions
Mostly compiled from searches of Quora, the Mindstorms subreddit, and the LEGO Stack Exchange.Can I control my NXT from a smartphone?
Yes, using Bluetooth you can connect an NXT to an Android phone, and then use any of several third-party apps to control the NXT's motors in real time. Unfortunately, due to implementation and certification details, NXTs cannot connect via Bluetooth to un-jailbroken iOS devices.
My NXT Won't Start!
This is usually caused by one of two things:
- Early NXT bricks (shipped in 1.0 and early Education sets) have a hardware bug which causes the screen to fail with prolonged use ( more info here). In this case, the NXT will actually start, but if the screen is completely blank and the sound has been disabled via the on-brick interface it may appear as if the brick is totally nonresponsive.
- If something goes wrong during a firmware update, or the firmware is otherwise corrupted, the NXT brick will become completely unresponsive. This condition is also characterized by a faint clicking sound which can be heard coming from the brick. Fortunately, this problem is easily solvable by following this procedue.
Can an NXT talk to an EV3 over Bluetooth?
As far as I'm aware, this cannot be easily accomplished using stock firmware and programming environments on both bricks. However, both bricks are normal Bluetooth devices, so this is technically possible, and would probably be pretty easy if running something like ev3dev on the EV3.
*Some eariler versions of ROBOLAB for the Mac, compatible with only the RCX, were distributed as Classic MacOS applications, and thus only ran on OS X 10.4 or older. Jump back
